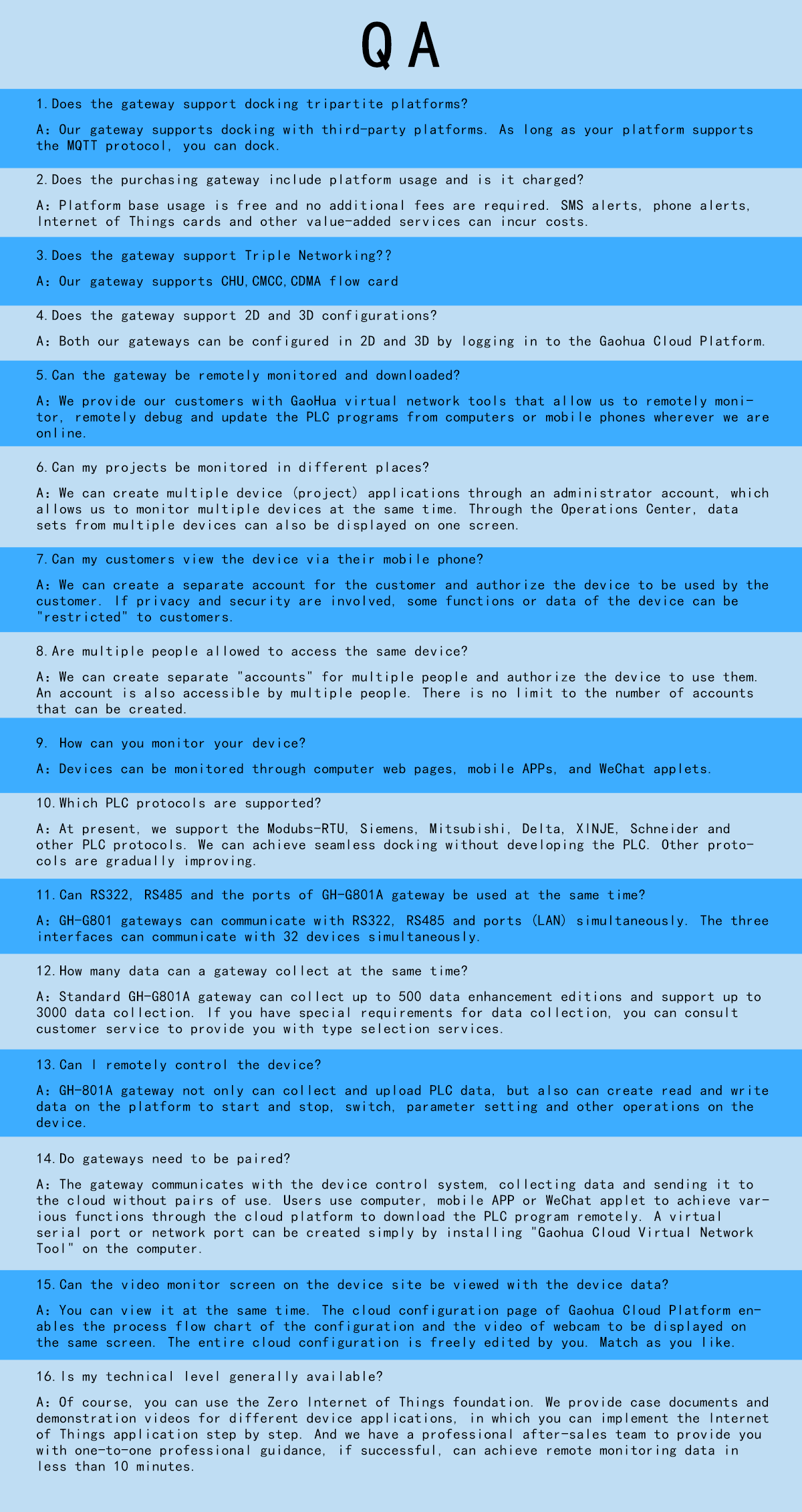

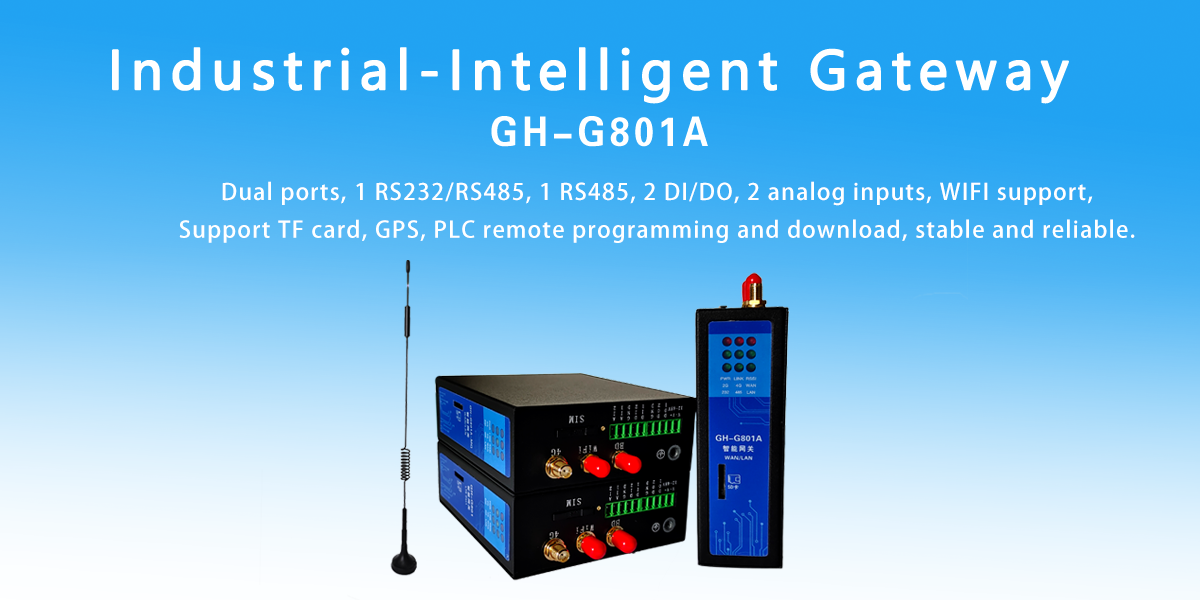

| Basic parameters |

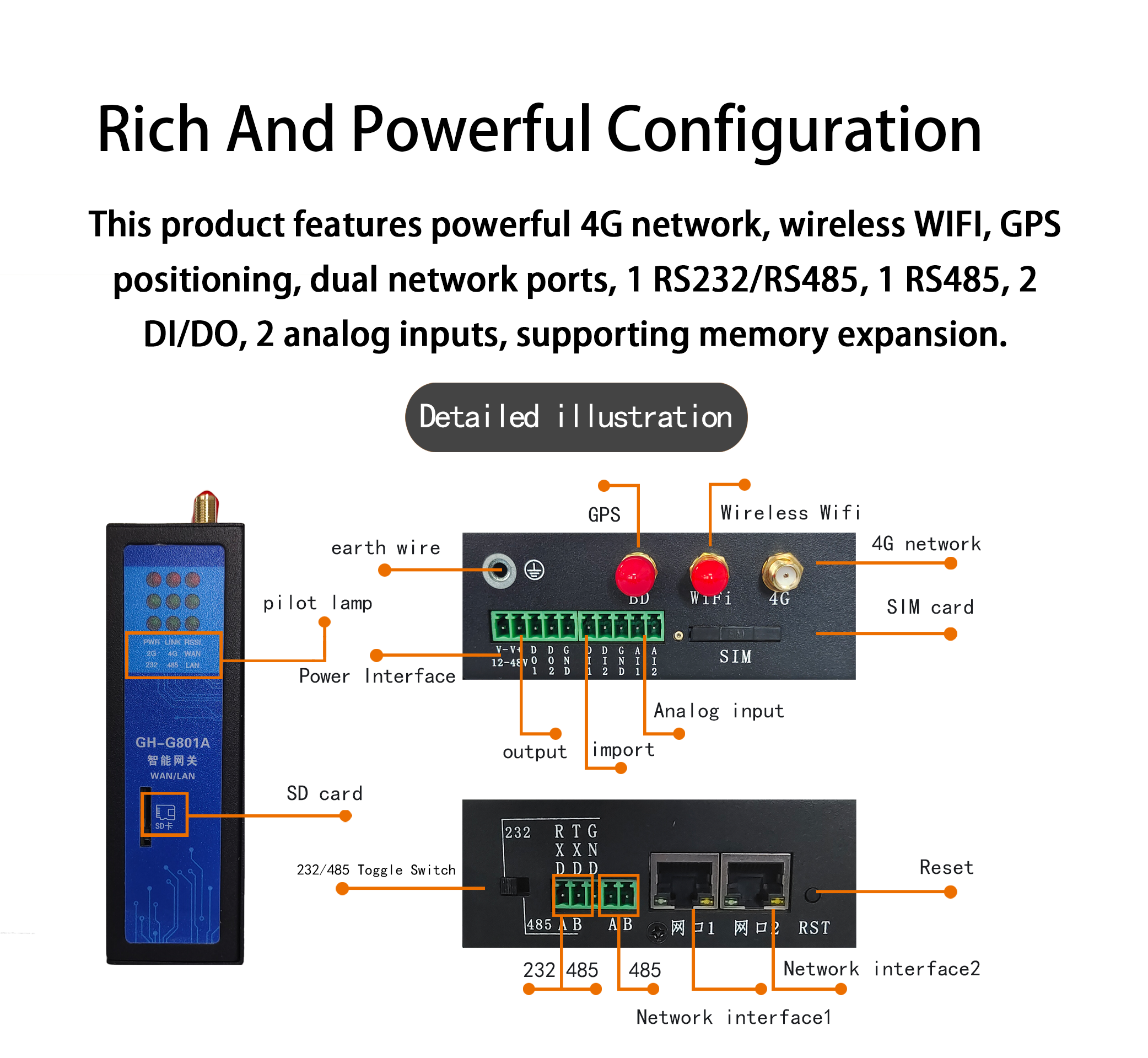

Hardware parameters |
data interface |
RS232/RS485_1 |
baud rate：600bps - 115200bps |
| RS485_2 |
baud rate：600bps - 115200bps |
| DI |
2 |
| DO |
2 |
| AI |
2(4~20mA/0~5V)(Select according to customer needs) |
| WIFI |
Support(Select according to customer needs) |
| GPS |
Support(Select according to customer needs) |
| LAN port |
10/100M Adaptive Ethernet Port, meeting IEEE802.3-2005 standard |
| WAN port |
10/100M Adaptive Ethernet Port, meeting IEEE802.3-2005 standard |
| working voltage |
DC 9~48V, anti reverse connection, anti surge, overcurrent protection |
| Maximum power consumption |
2.6w |
| Basic power consumption |
1.68W |
| working temperature |
-40°℃~65°℃ |
| Storage temperature |
-40°C~85°℃ |
| working humidity |
5%~85%(No Frost) |
| EMC characteristics |
static electricity:EN61000-4-2,level 3 |
| Radiated electric field: EN61000-4-3,level 3 |
| Pulsed electric field:EN61000-4-4,level 3 |
| surge:EN61000-4-5, level 3 |
| Conducted Harassment:EN61000-4-6,level 3 |
| Power Frequency Magnetic Field:EN61000-4-8,Horizontal/Vertical400A/m (>level 3) |
| Oscillating Wave Resistance:EN61000-4-12, level 3 |
| button |
Pinhole button, long press for 3 seconds to restore factory default parameters |
| SM card connector |
1.8V/3V,Drawer-type card connector |
| indicators |
With PWR, LINK, RSSl, 2G, 4G, WAN, 232, 485 and LAN indicators |
| SD card |
Supports large data storage |
| cooling method |
Natural wind cooling |
software function |
breakpoint transmission |
Support |
| Data distribution |
Supports MQTT and HJ-212 protocols* |
| Power failure alarm |
Support |
| Telephone alarm |
Support |
| Communication protocol |
Serial port |
Siemens，Mitsubishi FX Series，Schneider，Delta DVP Series，XINJE，FATEK etc |
| Network interface |
Siemens，Mitsubishi Q Series，Fins_Ethernet，Delta DVP Series，FATEK etc |
| Frequency division upload |
Real time upload, change upload, and scheduled upload |
| Data Report |
Periodic Storage, Conditional Storage, Change Storage |
| Remote Upgrade |
Support for remote firmware upgrade |
| PLC Remote Debugging |
Support remote PLC debugging, PLC program download |
| Edge calculation |
Support for script development* |
| Available cloud platform services |
| cloud platform services |
Cloud Configuration |
Support |
| Data storage |
Support |
| Mobile terminal monitoring |
Support |
| organizational structure |
Support |
| Role permissions |
Support |
| SMS alarm |
Support |
| Internet of Things card management |
Support |
| Style customization |
Support |
| openAPl |
Support* |
| Wireless parameter |
Wireless parameter |
Transmit power |
GSM850: Class 4 (33 dBm ±2 dB) |
| EGSM900: Class 4 (33 dBm ±2 dB) |
| DCS1800: Class 1 (30 dBm ±2 dB) |
| PCS1900: Class 1 (30 dBm ±2 dB) |
| GSM850 8-PSK: Class E2 (27 dBm ±3 dB) |
| EGSM900 8-PSK: Class E2 (27 dBm ±3 dB) |
| DCS1800 8-PSK: Class E2 (26 dBm ±3 dB) |
| PCS1900 8-PSK: Class E2 (26 dBm ±3 dB) |
| WCDMA: Class 3 (24 dBm +1/-3 dB) |
| LTE-FDD: Class 3 (23 dBm ±2 dB) |
| LTE-TDD: Class 3 (23 dBm ±2 dB) |
LTE characteristics |
support 3GPP R9 non-CA Cat 4 FDD 和 TDD |
| Supports 1.4/3/5/10/15/20 MHz RF bandwidth |
| Supports upstream QPSK, 16-QAM modulation |
| Support downlink QPSK, 16-QAM, 64-QAM modulation |
| LTE-FDD:Maximum downlink rate 150 Mbps and maximum upstream rate 50 Mbps |
| LTE-TDD:Maximum downlink rate 130 Mbps and maximum upstream rate 30 Mbps |
GSM characteristics |
GPRS |
Supports GPRS multi-slot level 12 |
| Encoding Format:CS-1/cS-2/cS-3/CS-4 |
| Maximum downlink rate 85.6 Kbps and maximum upstream rate 85.6 kbps |
EDGE |
Support EDGE multi-slot level 12 |
| Supports GMSK and 8-PSK modulation encoding |
| Downlink encoding formats: CS1-4 and MCS 1-9 |
| Upstream encoding formats: CS1-4 and MCS 1-9 |
| Maximum downlink rate 236.8 Kbps and maximum upstream rate 236.8 kbps |
| Antenna interface |
SMA Parent interface |
|
